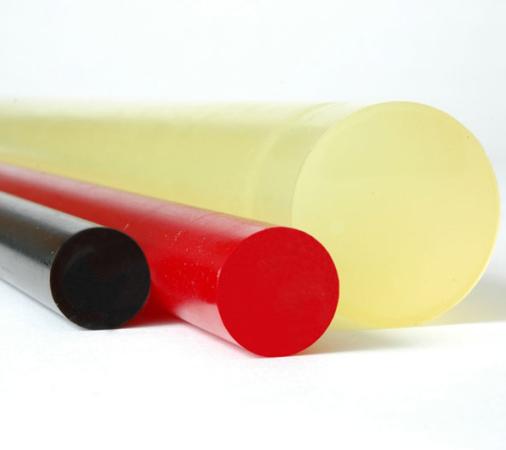

Cast Urethane Rods
Custom Abrasion Resistant Polyurethane Rods
With a long history of outstanding quality, superior product performance, and excellent customer service, PSI is a trusted provider of custom urethane rods and urethane rod stock.
Urethane rods offer several important benefits due to their elastomeric properties. PSI’s urethane rods are made of tough, crack-resistant, and abrasion-resistant polyurethane, which lasts significantly longer than conventional rubbers and plastics. We provide custom diameters, lengths, hardness, and colors with little or no tooling costs.
By producing our products in custom sizes, PSI eliminates waste from drop-offs, saving costs for the customer.
Custom Urethane Rod Specs
Durometer Hardness
- .375 OD and >: 20 Shore A to 90 Shore A
- 50 Shore D to 60 Shore D
- 70 Shore D is available in > .625 OD
- **Special Note about 60D & 70D material - Rods could contain some internal bubbles, due to the material setting up quickly**
Here is a list of our standard durometer specifications and our technical brief, to assist you with choosing the correct material.
DUROMETER REFERENCE CALCULATOR
Select Durometer
Select Hardness
For reference, this hardness is as soft as a Gel Shoe Insole
For reference, this hardness is as soft as a Rubber Band
For reference, this hardness is as soft as a Pencil Eraser
For reference, this hardness is as soft as a Tire Tread
For reference, this hardness is as soft as a Shopping Cart Wheel
For reference, this hardness is as soft as a Hard Hat
Rod Tolerances
- (3/8″ to 2″) +0.063 / -0.010″
- (2″ to 6″) +0.125 / -0.010″
Custom Application Specific Formulations
- FDA Dry Food Approved 40A to 85A
- Static Dissipative material is available in 40A to 85A (other durometers may be available upon request)
Standard Colors
Standard Colors or custom colors upon request
Sizes
Standard sizes - Custom sizes available in various OD's and Lengths
| Diameter | 36″ Length | 24″ Length | 12″ Length | |||
| 60-80A | 90A | 60-80A | 90A | 60-80A | 90A | |
| .375″ | ✓ | ✓ | ||||
| .5″ | ✓ | ✓ | ||||
| .625″ | ✓ | ✓ | ||||
| .75″ | ✓ | ✓ | ||||
| .875″ | ✓ | ✓ | ||||
| 1″ | ✓ | ✓ | ||||
| 1.25″ | ✓ | ✓ | ||||
| 1.5″ | ✓ | ✓ | ||||
| 1.75″ | ✓ | ✓ | ||||
| 2″ | ✓ | ✓ | ||||
| 2.25″ | ✓ | ✓ | ||||
| 2.5″ | ✓ | ✓ | ||||
| 2.75″ | ✓ | ✓ | ||||
| 3″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3.25″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3.5″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 3.75″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 4.5″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 5.5″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| 6″ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Applications for Urethane Rods
Urethane rods have several important applications and benefits due to their elastomeric properties. PSI manufactures cast polyurethane rods for the following applications:
- Bumpers and Spacers
- Strengtheners for Thin Metal Cores
- Cost-Effective Prototypes
- Suspension Mounts
- Sound Dampeners
Call PSI for a Custom Quote
Call one of our experienced application engineers today at (800) 888-5156 to learn more about urethane rods or request a quote for your custom urethane project online at any time.

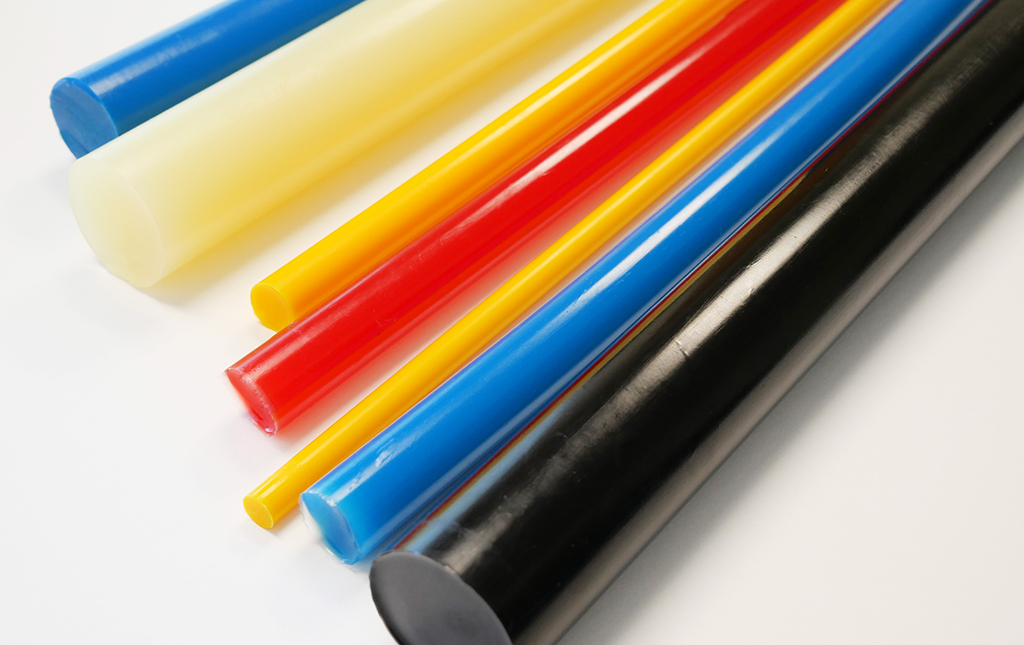

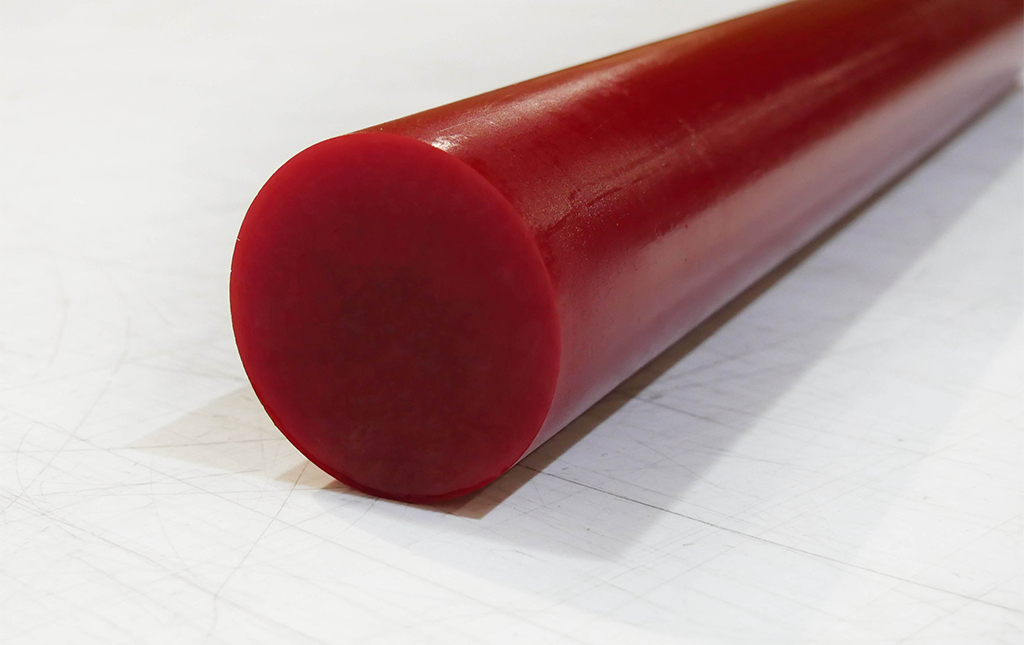

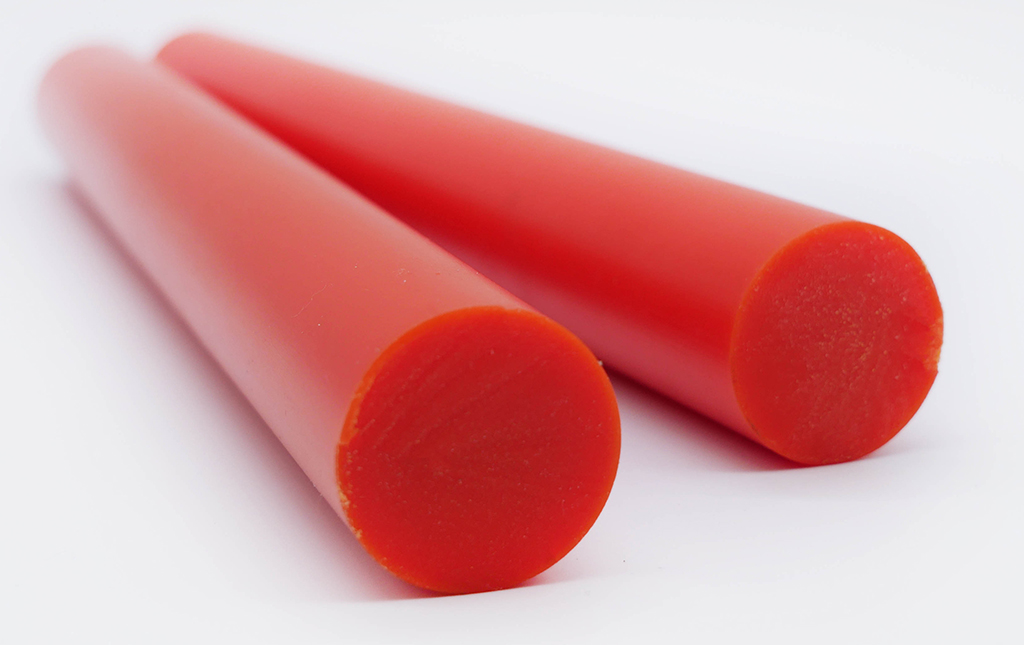

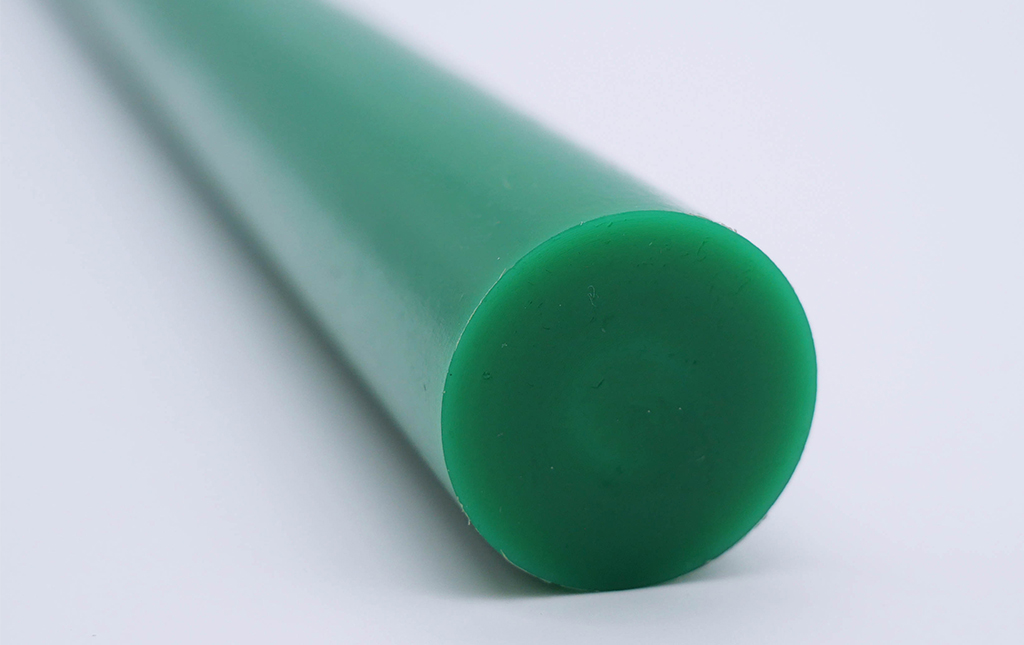

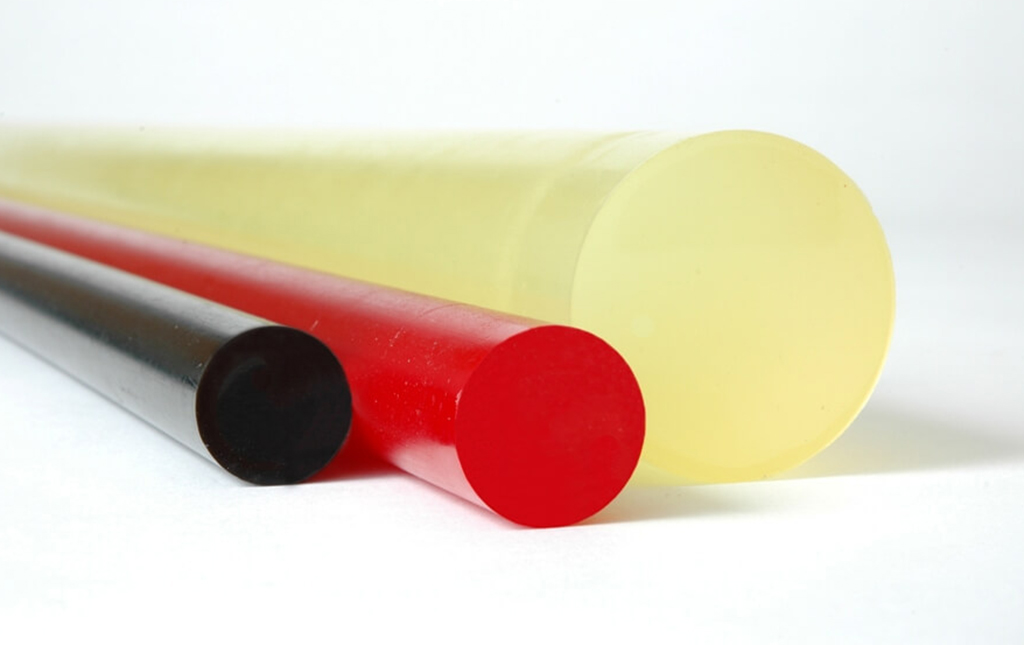

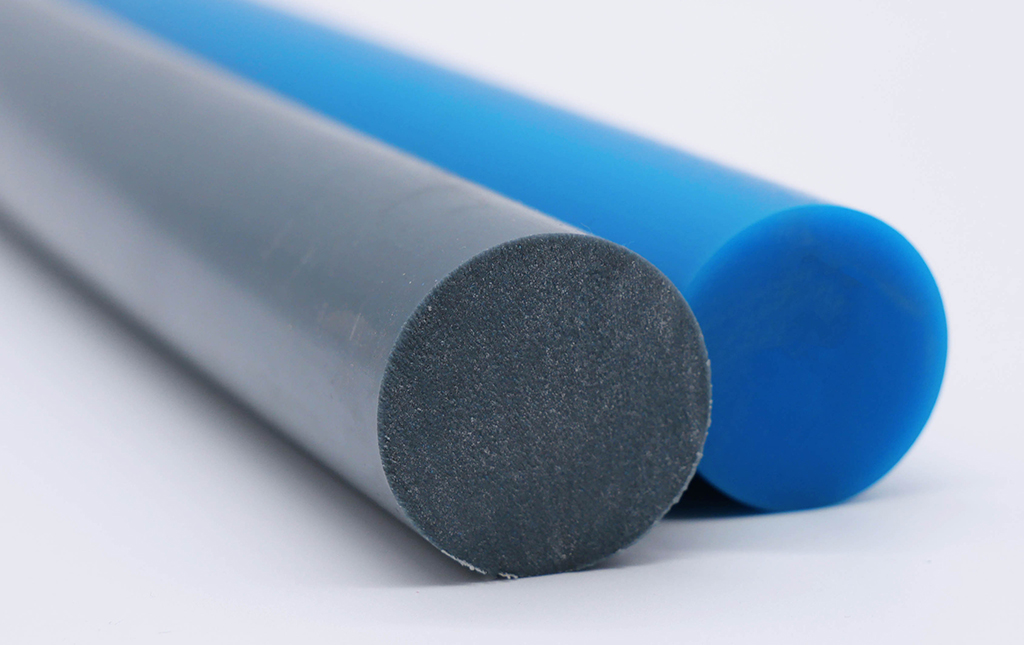

Custom Urethane Rods Gallery
Produced in custom sizes, PSI’s custom urethane rods outlast other materials, and by eliminating waste from drop-offs, save costs for customers. Learn more about custom polyurethane rods.
Industries that can use custom Rods
Many industries rely on urethane rods for their needs, including:
1 /
Food Processing
PSI manufactures FDA approved urethane products for food processing applications.…
2 /
Metal Forming
PSI Urethanes is a leading manufacturer of cast urethane for metal forming press…
3 /
Military
We manufacture custom molded parts, polyurethane sheets, and bond to metal for the…
4 /
Die Cutting
Our quality and accuracy in keeping close tolerances make our company sought out…
5 /
Fluid Cell Remold
For industries that depend on highly complex parts to keep their equipment functioning,…
6 /
OEM's
Original Equipment Manufacturers (OEMs) utilize PSI Urethanes’ manufacturing expertise…
7 /
Marine
PSI Urethanes is a leading manufacturer of cast and molded urethane for the marine…
8 /
Process Automation
From rollers and bumpers to assembly systems and material handling, urethane is a…
9 /
Automotive
PSI Urethanes is a leading manufacturer of cast and molded urethane for the automotive…
