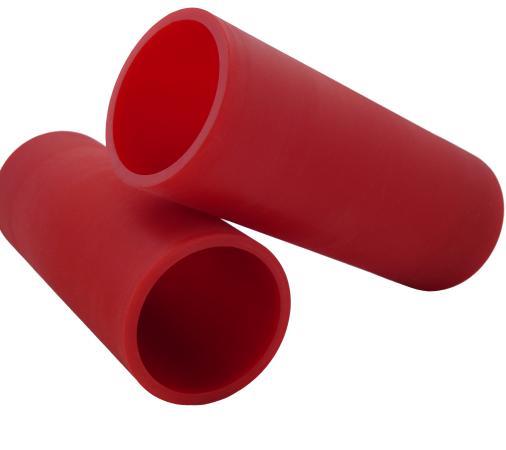

Cast Urethane Tube
Customized To Your Specifications
PSI produces custom cast tubes from our premium grade urethane to withstand a wide range of applications.
Available Custom Urethane Tube Specs
Durometer Hardness
- 20 Shore A to 90 Shore A
- 50 Shore D to 70 Shore D
Durometer Reference Calculator
For reference, this hardness is as soft as a Gel Shoe Insole
For reference, this hardness is as soft as a Rubber Band
For reference, this hardness is as soft as a Pencil Eraser
For reference, this hardness is as soft as a Tire Tread
For reference, this hardness is as soft as a Shopping Cart Wheel
For reference, this hardness is as soft as a Hard Hat
Standard Colors
Natural or custom colors available
Sizes
- Custom sizes in diameter and length listed below
- Custom contours on ID and/or OD surfaces
Additional
- Static Dissipative material is available in 40A to 85A (other durometers may be available upon request)
- FDA Dry and FDA Wet food approved available in 30A to 90A
- Graphite filled
- Dual Durometers for Specialty Applications
- Ground finish
- Tight tolerances
Benefits of Polyurethane Tubes
Strong & Durable. Versatile. No Cracks, Tearing or Swelling.
Many organizations rely on urethane tubes for a variety of applications. Urethane tubes result in a stronger, more durable, and more versatile product. PU tubes are commonly viewed as a better value, because tubes made with other materials often crack, tear, and swell.
Common Applications Include:
- Slide Over Cores for Rollers
- Protective Sleeves
- Vibration Isolators
- Bumpers
- Sound dampening
Call PSI for a Custom Quote

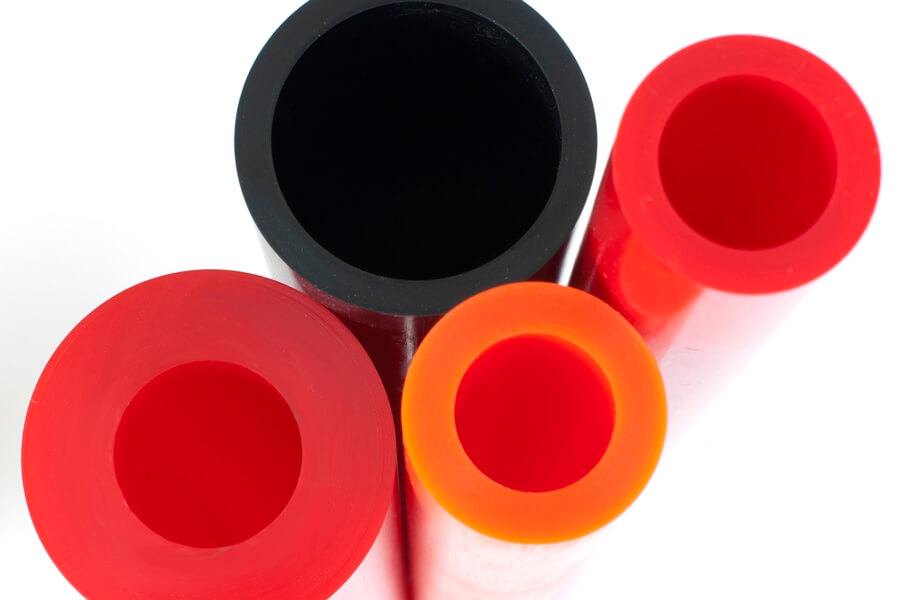

Custom Urethane Tube Gallery
Created with custom formulations custom polyurethane tubes are developed to meet unique specifications. Learn more about custom polyurethane tubes.
Ask Our Experts.
Contact us today to learn how we can meet your project’s requirements.
Standard In-House Tube Molds
Below is a chart of the ID and OD dimensions that we have molds for in-house. All ID’s listed have an “On Mandrel” tolerance, which means we pour them exactly. In its relaxed state, the ID will shrink down and will measure smaller than the dimension it was poured. Since polyurethane is an elastomer, it will stretch back out to the requested ID and will be a tight fit.
We have the ability to take our existing molds and customize tubes specific to your requirements. If you need an ID/OD combination that we have never produced, please note there may be a small setup charge for machining a top and base.
Standard In-House Tube Molds
Below is a chart of the ID and OD dimensions that we have molds for in-house. All ID’s listed have an “On Mandrel” tolerance, which means we pour them exactly. In its relaxed state, the ID will shrink down and will measure smaller than the dimension it was poured. Since polyurethane is an elastomer, it will stretch back out to the requested ID and will be a tight fit.
We have the ability to take our existing molds and customize tubes specific to your requirements. If you need an ID/OD combination that we have never produced, please note there may be a small setup charge for machining a top and base.
| Measurement | ID | OD | OD Tolerance | Length |
| .375" | ✓ | 6" long is the maximum if the OD needs to be turned. | ||
| .500" | ✓ | 10" long is the maximum if the OD needs to be turned. | ||
| .625" | ✓ | 11" long is the maximum if the OD needs to be turned. | ||
| .750" | ✓ | 12" long is the maximum if the OD needs to be turned. | ||
| .875" | ✓ | 15" long maximum if the OD needs to be turned. | ||
| 1" | ✓ | ✓ | ± .063 | Up to 36" |
| 1.25" | ✓ | ✓ | ± .063 | Up to 36" |
| 1.50" | ✓ | ✓ | ± .063 | Up to 36" |
| 1.75" | ✓ | ✓ | ± .063 | Up to 36" |
| 2" | ✓ | ✓ | ± .063 | Up to 36" |
| 2.25" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 2.50" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 2.75" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 3" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 3.25" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 3.50" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 3.75" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 4" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 4.25" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 4.50" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 5" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 5.5" | ✓ | ✓ | +.125/-.060 | Up to 36" |
| 6" | ✓ | ✓ | +.125/-.060 | Up to 36" |
